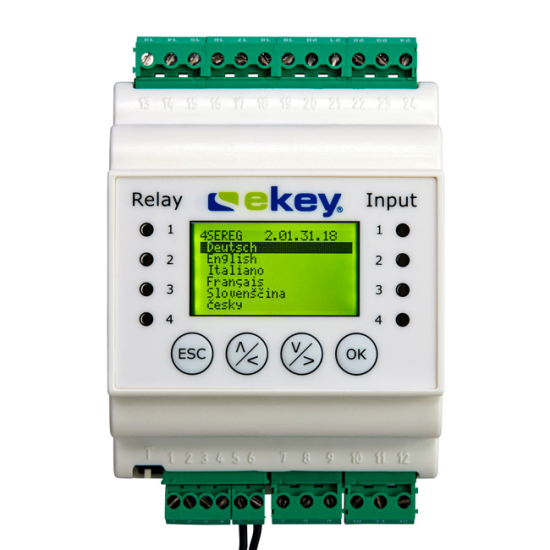

CONTROL PANEL MULTI 4 RELAIS OPBOUW/DIN RAIL MONTAGE

••Dimensions WxHxD:
70 x 86 x 54mm (4 HP)
••Power consumption: approx. 1 W
••Supply voltage: 8-24 VDC
••Temperature range: -20 °C to 70 °C
••IP code: IP20
••Relays: 4 x potential-free
••Max. relay voltage, max. relay current:
42 VAC/DC; 2 A
••Inputs (door opener): 4 x potential-free
••Display: LCD 106 x 56 pixels,
7 lines/21 characters + 2 x 4 status LEDs
• Operation: 4 buttons
••RS-485 termination: switchable
••Runtime buffer for built-in clock: 96 h
• Connect up to 4 scanners/keypads, enroll
users, delete individual users, set relay times
(0-99s), change security code, reset, adjust
LED brightness, test mode, 3 time zones,
access log recording, master key plan, names
input, vacation and always-access mode,
configurable inputs
• KNX compatib
