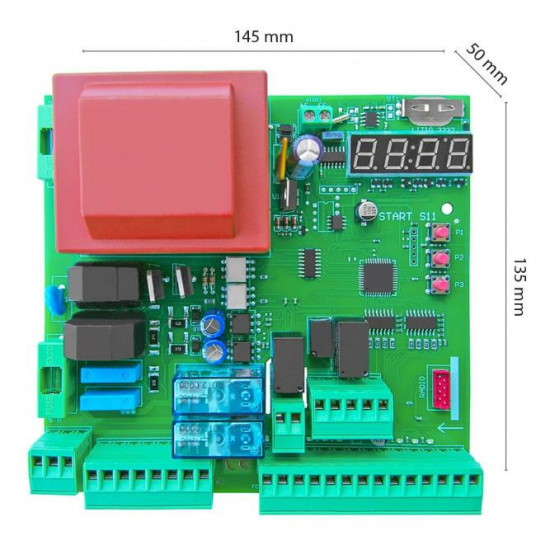

231 V CONTROL UNIT FOR 1-2 MOTORS WITH TIMER INCLUDED+ OBSTACLE DETECT

230Vac control unit/control panel/control card for sliding gate motors/swing gates/roll-up doors/ garage doors/rolling shutters. Start-clock-timer integrated.Digital version with display. Receiver IBR-N not included Inputs: Photo A during closing, photo B during opening and closing, phototest, open and close limit switch electrical lock and electro-magnetical block, partial opening, stop. Adjustable speed, force, slowing down and obstacle detection. Time acquisition in "real-time". Control card only - Power Supply:230Vac - Max Power Motor: 750W 4A - Dry Contact: 5A - Consumption:24Vac 300mA, 12Vac 600mA, 24Vdc 100mA - Weight (gr): 814 - Dimension (mm): 135x145x50
