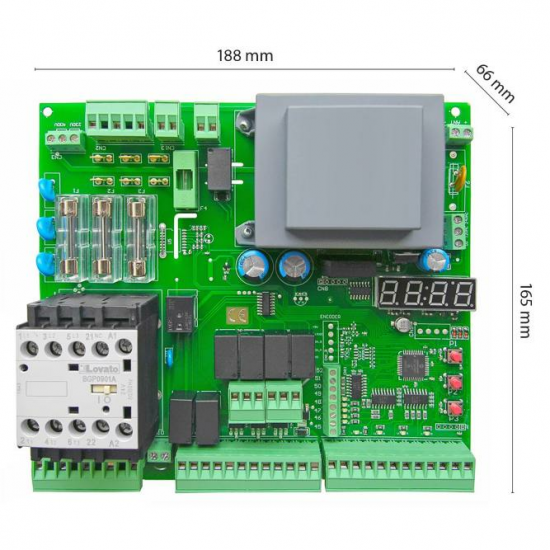

1 MOTOR CONTROL UNIT FOR TELESCOPIC DOCK LEVELLER SUPPLIED WITH BOX AN
Control panel for dock leveller with forward and liftin-lip. Managing of 2-3 valves. START-TMXL has a display for an intuitive and easy programming system. The menu structure, is carefully designed, for a clear and immediate set up of the working time and logic of functions. START TMXL can activate separately, until P1 will be released,the opening system, closing system, the signal lights outputs and the test. This can be useful in case you need to check the correct working of the outputs and devices.
|1.||Power Supply: 400/230Vac|
|2.||Output: 12/24V ac-dc|
|3.||IP Rating: 65|
|4.||Weight (gr): 600g|
|5.||Dimensions (mm): 208x270x105|
|IP waarde||IP 65|
